A portable power station is an integrated energy system containing a battery pack, battery management system (BMS), inverter, charging and power-conversion circuits, PCBs, connectors, display components, cooling components, and structural supports.
Unlike stationary energy storage equipment, portable power stations are frequently moved, transported, stored in vehicles, and used outdoors. As a result, they are exposed not only to electrical and environmental stresses, but also to mechanical forces.
Puncture is only one form of physical damage. Drops, impacts, crushing, enclosure deformation, cracking, abrasion, connector stress, handle damage, vibration, and internal structural damage can also affect product reliability.

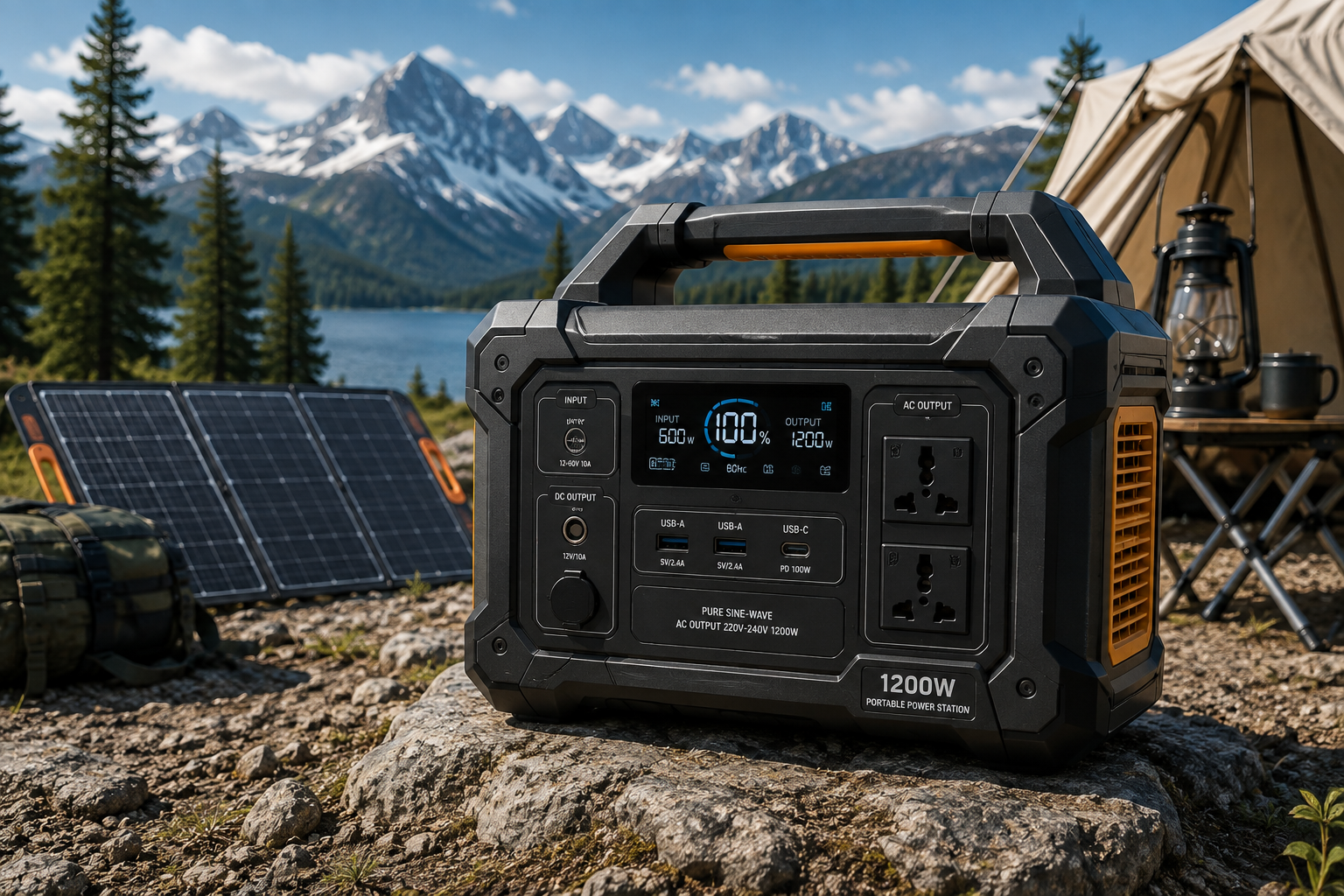

[Image 1: Portable power station designed for outdoor use with a durable enclosure and structural protection.]
1. Drop Damage
Dropping is one of the most common mechanical risks for a portable power station. A unit may fall from a table, vehicle trunk, shelf, workbench, or camping platform during handling or transportation.
The severity of damage depends on drop height, product weight, impact location, surface hardness, and impact direction. When a corner hits the ground first, the impact load can become concentrated in a small area, potentially causing enclosure deformation, cracking, or stress on internal mounting structures.
A power station that still turns on after a drop should not automatically be considered free of internal mechanical damage.
2. Impact Damage
A portable power station does not need to fall from a height to experience impact damage. It may hit a vehicle wall during sudden braking, collide with a door frame during handling, be struck by another tool, tip over, or collide with other equipment during transportation.
The enclosure is not only an aesthetic component. It also helps distribute external loads, protect internal components, and maintain structural integrity.
Material selection, wall thickness, corner geometry, and internal reinforcement therefore all contribute to mechanical reliability.
3. Crushing Damage
Crushing usually results from sustained or excessive external loads, such as improper stacking during transportation, heavy objects placed on the unit, compression inside a vehicle, being trapped in a narrow space, or accidental stepping.
Minor compression may only deform the enclosure. Severe compression can transmit mechanical stress to the battery pack, PCBs, connectors, and internal supports.
Battery systems require particular attention because significant mechanical deformation can affect the integrity of the battery assembly.
4. Puncture Damage
Puncture occurs when a sharp object penetrates the enclosure.
Depending on the location and depth of the penetration, internal wiring, PCBs, connectors, or battery components may be affected.
The size of a hole in the enclosure alone is therefore not enough to determine the severity of the damage. Penetration near the battery compartment, major electrical components, or ports requires more careful inspection.
5. Abrasion and Surface Wear
Portable power stations may repeatedly rub against vehicle floors, concrete, metal frames, wooden surfaces, storage shelves, or other equipment during transportation and use.
Minor scratches, scuffs, and coating wear are generally cosmetic. However, repeated abrasion around seams, protective structures, or other critical areas may gradually reduce mechanical protection.
Abrasion is typically a low-intensity mechanical stress that accumulates over time.
6. Enclosure Deformation
The enclosure of a portable power station can provide structural support, component protection, connector support, and environmental protection in addition to its cosmetic function.
A small dent may be primarily cosmetic when the enclosure remains properly aligned and there are no other abnormalities.
More significant deformation, such as misaligned panels, open seams, displaced ports, a warped bottom panel, or deformation around the battery compartment, should be evaluated more carefully.
7. Enclosure Cracking
Cracks can result from drops, impacts, crushing, or repeated mechanical stress.
The location and extent of a crack are important. Cracks around the battery compartment, ports, handle mounting points, or enclosure seams are generally more significant than superficial surface marks.
A damaged enclosure may also affect the product's original structural and environmental protection.
8. Port and Connector Damage
Portable power stations commonly include AC, USB, DC, automotive, and other power connectors.
These components provide electrical connections, but they are also mechanical structures.
Side loads from cables, excessive insertion force, angled connections, or moving the power station while a rigid plug remains connected can transfer mechanical stress to the connector, solder joints, PCB, or internal mounting structure.
Repeated mechanical stress may eventually result in loose connectors, unstable contact, or intermittent power delivery.
9. Handle Damage
The handle is an important load-bearing component, particularly on high-capacity portable power stations.
Long-term loading, sudden impact, side loads, or dropping the unit while carrying it may damage the handle, mounting hardware, or the enclosure around the handle.
Handle strength is therefore not only an ergonomic consideration. It is also part of overall mechanical reliability.
10. Display Damage
The display is usually located on an exposed area of the product and may be affected by impact, compression, or drops.
Common problems include cracked display panels, surface damage, abnormal display behavior, and touchscreen failure.
A strong impact around the display area should also prompt inspection of the surrounding enclosure and mounting structure.
11. Vibration and Mechanical Fatigue
Physical damage does not always result from a single severe event.
Portable power stations installed or transported in RVs, vehicles, boats, and mobile work equipment may experience continuous vibration.
Unlike a major impact, vibration typically involves relatively small forces repeated over a large number of cycles.
Long-term vibration can contribute to loose screws, connector movement, wiring abrasion, PCB mounting fatigue, and abnormal behavior from fans or other internal components.
A single impact may cause immediate damage, while repeated vibration can produce mechanical fatigue over time.
12. Internal Component Damage
A portable power station may contain battery modules, a BMS, inverter components, DC-DC converters, charging circuits, cooling fans, wiring harnesses, connectors, and mounting brackets.
A severe drop or impact can cause internal components to shift, mounting points to become stressed, or connectors and wiring to become loose.
Internal mechanical damage does not necessarily cause an immediate failure. Some problems may only become apparent during charging, high-power operation, or extended use.
13. Battery Pack Mechanical Damage
The battery pack is the primary energy-storage component of a portable power station, so severe drops, impacts, crushing, or deformation around the battery compartment require particular attention.
The fact that a device still powers on does not by itself confirm that the internal battery cells are undamaged.
If a product shows severe deformation, unusual heat, abnormal odor, leakage, smoke, significant swelling, or other abnormal symptoms, it should be taken out of service and handled according to the manufacturer's safety instructions. A severely damaged unit should not be repeatedly charged or discharged simply to test whether it still works.
14. Transportation Damage
A portable power station may travel through packaging, loading, trucking, warehousing, container transportation, and final delivery before reaching the end user.
During this process, it can be exposed to drops, impacts, compression, stacking loads, and continuous vibration.
Product mechanical reliability and packaging protection should therefore be considered together.

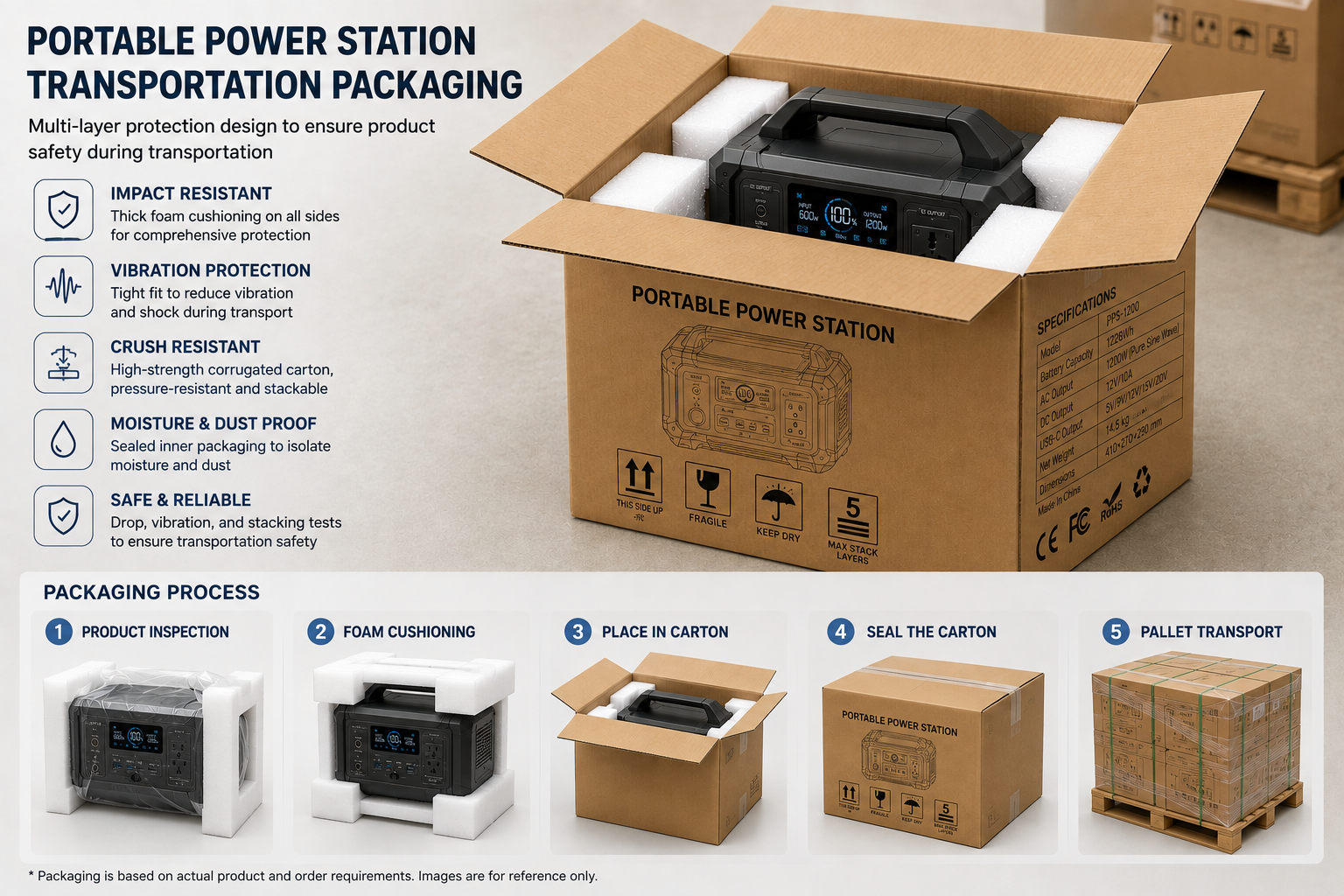

[Image 2: Protective packaging helps reduce the risk of impact, crushing, vibration, and movement during transportation.]
15. How to Assess Physical Damage
A practical classification can divide physical damage into four levels:
Level 1: Cosmetic damage — scratches, scuffs, and minor coating damage.
Level 2: Enclosure damage — dents, cracks, and localized deformation.
Level 3: Functional mechanical damage — loose ports, damaged handles, or damaged displays.
Level 4: Internal or battery damage — severe impact, crushing, or obvious structural abnormalities.
This approach is more useful than simply asking whether the product can still turn on.
16. How Manufacturers Reduce Physical Damage
Mechanical reliability should be considered during product design rather than only after a failure occurs.
Enclosure design: Select appropriate materials, wall thickness, corner geometry, and reinforcement structures.
Internal structure: Secure the battery pack, PCBs, fans, connectors, and wiring properly.
Connector design: Improve connector retention strength and reduce side loading from cables.
Handle design: Design adequate load capacity and connection strength according to product weight and real-world handling conditions.
Battery protection: Provide reliable fixation and structural protection for cells or battery modules.
Packaging design: Provide appropriate protection against drops, impacts, compression, vibration, and movement inside the package.

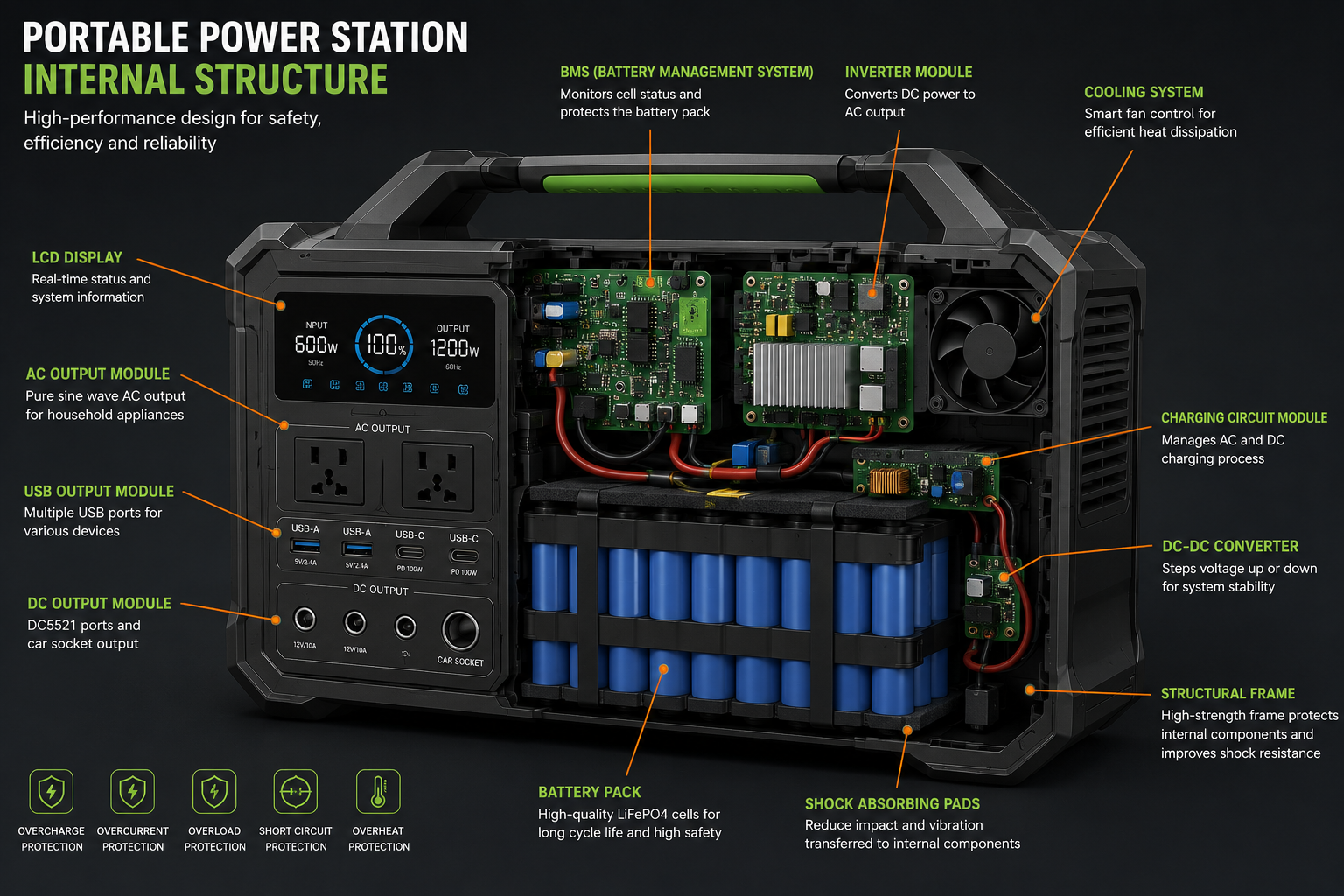

[Image 3: Internal structure of a portable power station showing the battery pack and major internal components.]
