September 20, 2026  |  Technical Explainer

Is a Bigger Battery Always Better for a Portable Power Station? How to Read Wh Properly

1. What Wh Really Means: the Battery's True Fuel Gauge

The most important number on a power station's label is Wh (watt-hour), the total energy the battery can store: 1 Wh equals a 1 W load running for one hour. The relationship is simple: energy (Wh) = voltage (V) × capacity (Ah) = power (W) × time (h).

Figure 1  Two ways to calculate Wh, and how a ~1 kWh pack is built (illustrative)

Why not just look at mAh? mAh describes charge, and different batteries run at different voltages. A 20,000 mAh cell pack at 3.7 V holds about 74 Wh; the same 20,000 mAh at 12.8 V holds 256 Wh, more than three times as much energy. Power stations mostly use lithium iron phosphate (LiFePO₄) cells at roughly 3.2 V nominal, versus about 3.6–3.7 V for ternary lithium, so only Wh allows a fair comparison.

2. Rated Capacity Is Not Usable Energy

The Wh on the label is the rated energy on the battery side. Before it reaches the AC outlet it passes two gates: the reserve and self-consumption that the BMS (battery management system) needs to protect the cells, and the DC-to-AC inverter and standby losses. Cold weather, heavy loads and long standby periods reduce the usable output further.

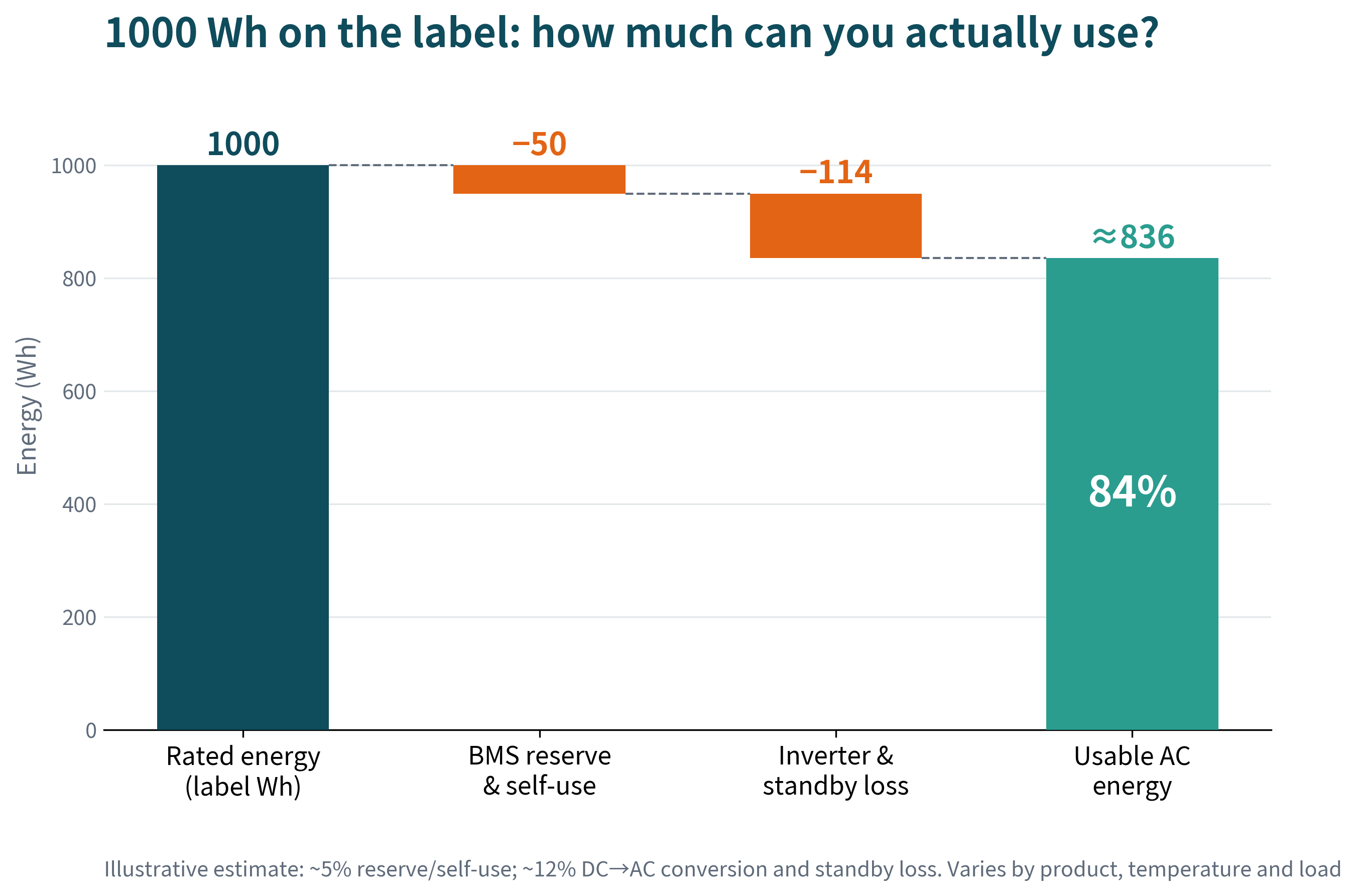

Figure 2  Waterfall of a 1000 Wh rating: about 836 Wh usable on the AC side (illustrative)

A practical shortcut is an overall factor of 0.80–0.90; this article uses 0.85: runtime (h) ≈ rated Wh × 0.85 ÷ load (W). USB and DC ports also tend to be more efficient than the AC inverter, so use them first for phones and laptops.

3. Wh Sets How Long; W Sets Whether It Can Run at All

Capacity and power are independent. Wh determines runtime; rated output power (W) determines whether a device can run at all. A 300 W unit cannot power a 1000 W kettle even if it is full, and compressor or motor loads can draw several times their rated power at start-up, so check the surge rating too.

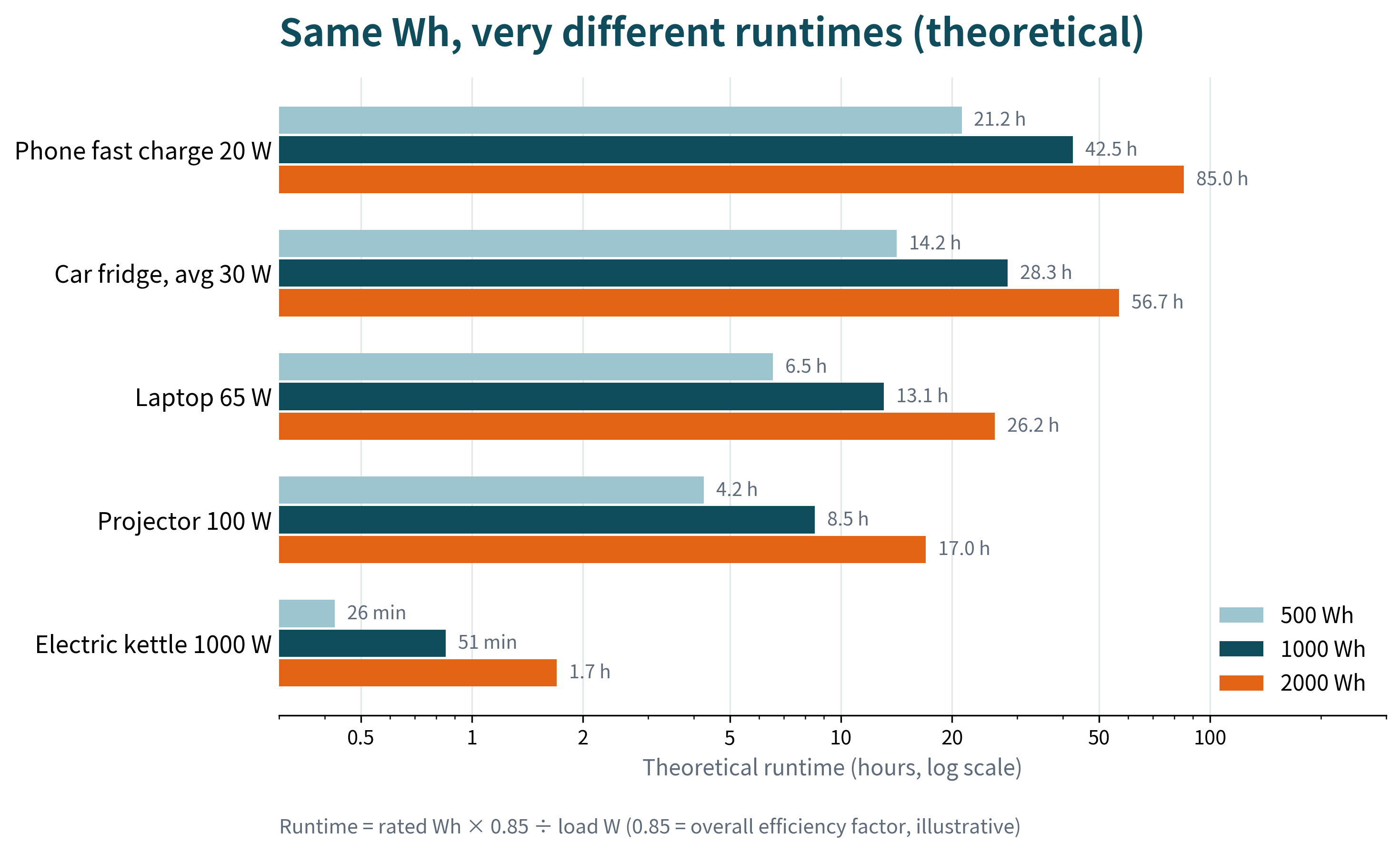

Figure 3  The same Wh gives very different theoretical runtimes (overall factor 0.85)

Figure 3 shows that 1000 Wh keeps a phone fast-charging for over 40 hours but runs a 1000 W kettle for only about 50 minutes. Heating appliances (kettles, induction cookers, hair dryers) are true energy hogs; gas is usually a smarter choice when camping.

4. Is Bigger Better? Four Costs of More Capacity

1) Weight and size. Whole-unit energy density is roughly 60–110 Wh/kg (illustrative range), so 1000 Wh weighs about 9–17 kg, 2000 Wh about 18–33 kg, and 3000 Wh can reach 27–50 kg, which calls for wheels or two people.

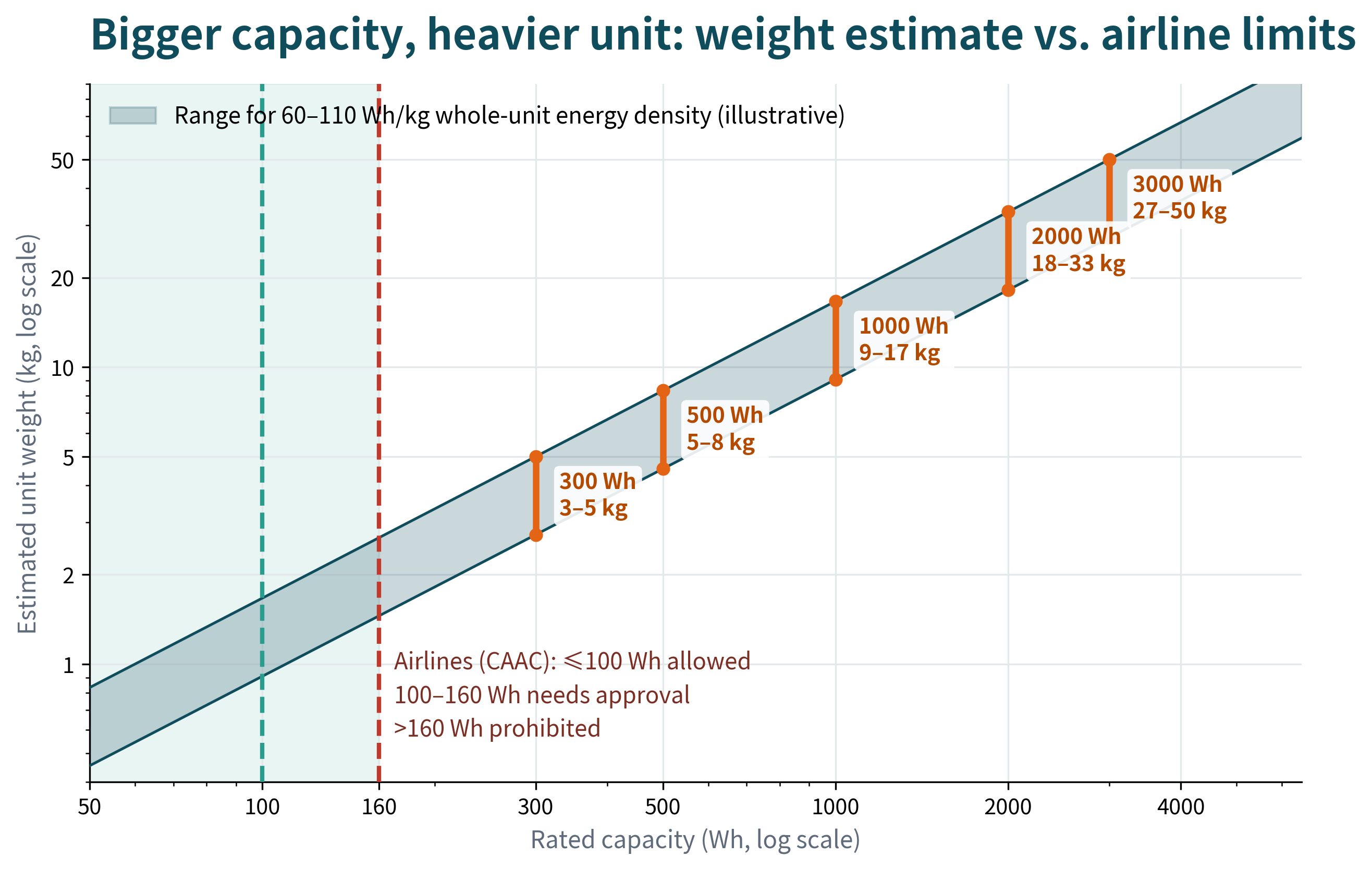

Figure 4  Estimated weight versus capacity, with the 100 Wh / 160 Wh airline thresholds

2) Price. Cell, structural and thermal costs all rise with capacity, yet you may never use the extra energy.

3) Charging time. Charging time ≈ capacity ÷ charging power (theoretical, ignoring efficiency and the slow final stage). 2000 Wh takes about 2 hours at 1000 W AC input but close to 10 hours from a 200 W solar panel. The larger the pack, the slower the refill.

4) Travel and compliance limits. Under CAAC rules, power banks up to 100 Wh need no airline approval; those above 100 Wh and up to 160 Wh need approval, with a maximum of two per passenger; anything above 160 Wh is prohibited. They must travel in carry-on baggage and cannot be used in flight. Since June 28, 2025, power banks without a clear CCC mark, or from recalled models, are also banned on domestic flights. Most portable power stations therefore cannot fly; always check your airline's latest requirements.

5. 2026 Update: the Mandatory Standard and Industry Trends

The new standard. On April 3, 2026, China published the mandatory national standard GB 47372—2026, Safety Requirements for Power Banks, drafted under the Ministry of Industry and Information Technology. It takes effect on April 1, 2027 after a 12-month transition and covers both portable power banks and portable power stations. During the transition, makers may follow either the new or the previous standard, and CCC-certified products you already own can continue to be used.

Table 1  Main new requirements of the standard (compiled from official expert Q&A)

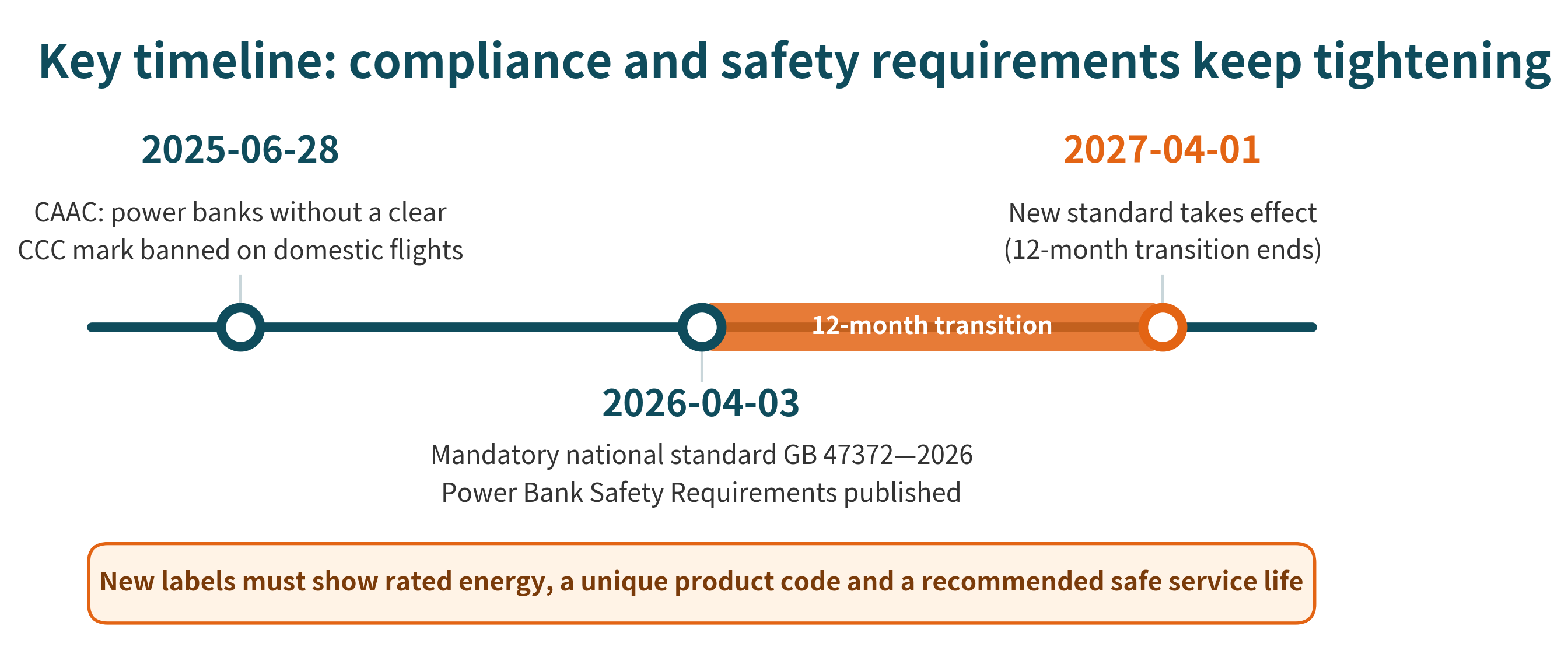

Figure 5  From the aviation rule to the new standard: key timeline

What does this mean for Wh? The standard explicitly requires the rated energy to be marked, making Wh the mandatory common yardstick. When shopping, rely on the rated Wh on the label rather than vague marketing phrases such as “huge capacity”.

Industry trends. First, LiFePO₄ has become the mainstream cell route for mobile energy storage thanks to its safety and cost advantages, and many makers claim 3,000–4,000 cycles for automotive-grade cells (manufacturer claims; real results vary with use). Second, competition has shifted from piling on capacity to fast charging, app control, solar input, UPS/EPS switchover and parallel expansion. Third, industry reports suggest that sodium-ion and solid-state batteries, if commercialized, could ease today's energy-density and low-temperature limits; this is an outlook that still awaits market validation.

6. How to Choose: a Three-Step Method

Step 1: List loads and calculate demand. List every device, multiply power × time, sum them, divide by 0.85 and add about 20% headroom. Below is an example for a one-night, one-day car-camping trip.

Table 2  Example capacity calculation (illustrative values; adjust to your real devices)

Step 2: Check power. The combined power of devices running at the same time must stay below the rated output, with extra room for start-up surges from compressors and motors.

Step 3: Check carrying and recharging. What weight can you accept? Will you recharge from the grid, the car or solar, and how long will a full charge take? Do you need to fly with it? Then use the table below to find your tier.

Table 3  Capacity tiers and trade-offs (rule-of-thumb reference)

7. Quick Buying Checklist

• Read rated Wh, not mAh. The label should show rated Wh clearly; the new standard makes this mandatory.
• Check both rated and surge power. Wh governs runtime, W governs whether the load can run.
• Estimate real runtime with a factor near 0.85, and discount further in the cold.
• Check cells and cycle life. Prefer LiFePO₄ and note the conditions behind any quoted cycle count.
• Check charging options and speed. The larger the pack, the more it matters to know AC, car and solar charging power.
• Look for certification and labels. Check the CCC mark, the unique product code and the recommended safe service life.

Conclusion

The best power station is not the biggest one but the best matched one. Understand Wh first: it is total energy, not usable energy. Then work out demand: power × time ÷ efficiency, plus reasonable headroom. Finally, balance weight, price, charging time and compliance. As GB 47372—2026 approaches, rated energy, unique codes and other data will become more transparent, giving buyers firmer ground to decide on.
